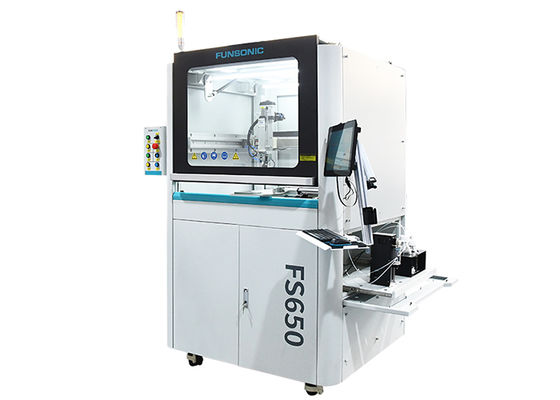

Semiconductor Glass Protective Film Ultrasonic Functional Coating

MOQ: 1 unité
Prix: Negotation
Emballage Standard: Emballé d'un étui en bois
Mode De Paiement: T / T, Western Union
Capacité D'approvisionnement: 1000 unité par mois
Informations détaillées
Description du produit
Informations détaillées
Lieu d'origine
CHINE
Nom de marque
FUNSONIC
Certification
CE
Numéro de modèle
FS650
Nom de production:
Système de pulvérisation par ultrasons de production
Fréquence:
20 à 200 kHz pour la sélection
Puissance maximale:
100W
Volume maximal de pulvérisation continue:
20 à 1200 ml/h/pcs, évolutif
Largeur effective de pulvérisation:
2-260 mm/pcs, évolutif
Uniformité de pulvérisation:
<5%
Viscosité de la solution:
≤ 30 cps
Tension d'entrée:
220V±10%/50-60Hz
Mettre en évidence:

semiconductor glass protective film

,

ultrasonic spray coating machine

,

functional coating with warranty

Description du produit

Semiconductor Glass Protective Film Ultrasonic Functional Coating


Description:


Ultrasonic functional coating of semiconductor glass protective film is a high-tech material commonly used to improve the wear resistance, stain resistance, and reflectivity of glass surfaces. The ultrasonic functional coating of semiconductor glass protective film forms a uniform and compact film layer on the substrate surface through ultrasonic vibration, which not only improves light transmittance, reduces reflection, and enhances visual effects, but also enhances the scratch resistance of the glass, prolongs its service life, and reduces the adhesion of dirt and fingerprints, making it easy to clean.



Parameters:


Product Type

Ultrasonic Precision Spray Coating Machine Laboratory desktop Type

FS310

Intelligent Ultrasonic Precision Coating Machine desktop Type

FS620

Benchtop Ultrasonic Spray Coating Machine

FS650
Spray Nozzle Operating Frequency 20-200KHz 20-200KHz (Normally use 60100110120K) 20-200KHz (Normally use 60100K)
Nozzle Power 1-15W 1-15W 1-15W
Continuous Spraying Volume Max 0.01-50ml/min 0.01-50ml/min Determine based on the type and quantity of nozzles configured (Max 5 Nozzles)
Effective Spraying Width 2-100mm 2-100mm Determine based on the type and quantity of nozzles configured
Spray Uniformity ≥95% ≥95% ≥95%
Solution Conversion Rate ≥95% ≥95% ≥95%
Dry Film Thickness 20nm-100μm 20nm-100μm 20nm-100μm
Solution Viscosity ≤30cps ≤30cps ≤30cps
Temperature Range 1-60℃ 1-60℃ 1-60℃
Atomized Particles (Median Value) 10-45μm (distilled water), determined by the frequency of the nozzle 10-45μm (distilled water), determined by the frequency of the nozzle 10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max ≤0.10MPA ≤0.15MPA ≤0.15MPA
Input Voltage 220V±10%/50-60Hz 220V±10%/50-60Hz 220V±10%/50-60Hz
Exercise Mode X+Y two axis fully automatic, Z-axis manual adjustment XYZ three-axis, independently programmable A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module
Control Mode Micro computer card, 7-inch touch screen+buttons FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen PLC control, operation control system developed based on Windows system, supporting remote operation, upgrading, etc
Control Content Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems The touch screen integrates ultrasonic nozzle, liquid supply, heating, adsorption, ultrasonic dispersion and other controls, and also has system monitoring, alarm and other functions
Liquid Supply Method Precision injection pump Precision injection pump Precision injection pump
Ultrasonic Dispersion System (Optional) 50ml, 40K, biological grade sampler 20ml or 50ml, 40K, biological grade sampler 20ml or 50ml, 40K, biological grade sampler



Precautions:


1. Material selection
Coating material: Select high-quality resins and additives to ensure the wear resistance and adhesion of the coating.
Solvent compatibility: Ensure that the solvent used is compatible with the coating material to prevent coating failure.
2. Surface treatment
Cleanliness: The glass surface must be completely clean, removing dust, oil stains, and other impurities to ensure good adhesion.
Surface roughness: Proper surface treatment can increase coating adhesion and prevent coating peeling.
3. Ultrasonic parameters
Frequency and power: Adjust the frequency and power of the ultrasonic spraying equipment to achieve the best spraying effect.
Spray angle and distance: Control the spray angle and distance to ensure even distribution of the coating.
4. Drying and curing
Temperature and Time: Strictly control the temperature and time of drying and curing to ensure complete curing of the coating.
Avoid contamination: During the drying and curing process, avoid external contaminants from contacting the coating.



Semiconductor Glass Protective Film Ultrasonic Functional Coating

Semiconductor Glass Protective Film Ultrasonic Functional Coating 0

Semiconductor Glass Protective Film Ultrasonic Functional Coating 1
